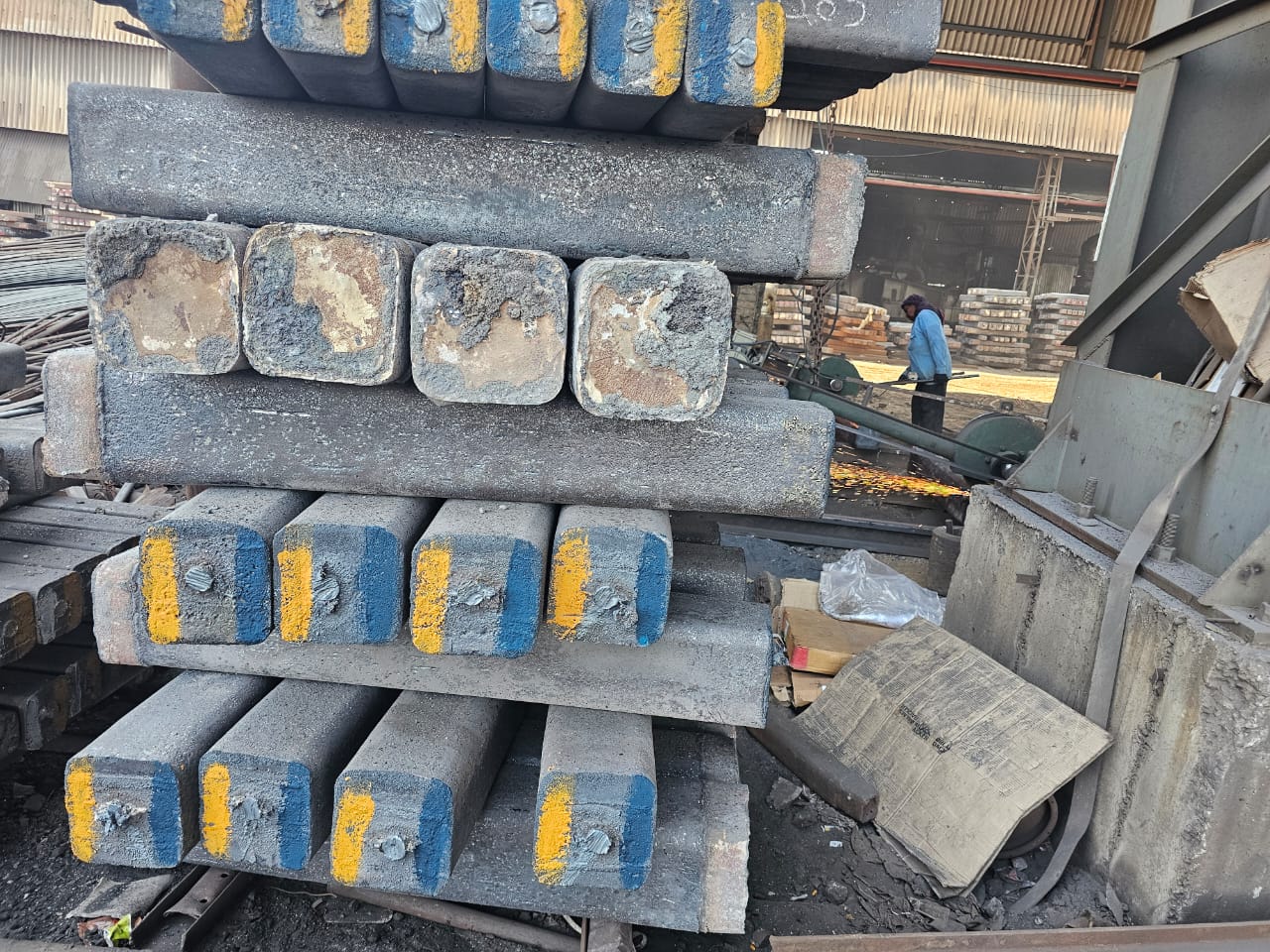

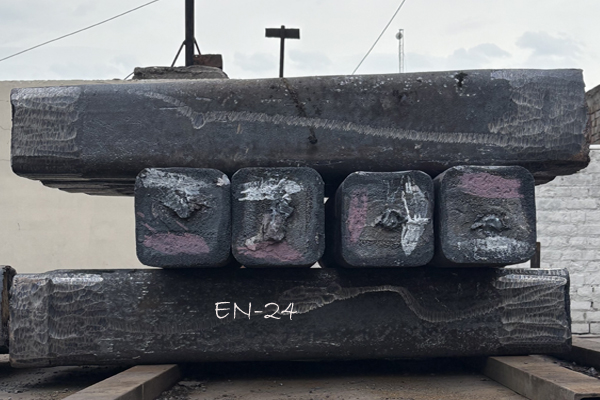

Forging Ingots

Balaji Multimetals manufacture and supply high quality forging ingots are suitable for producing all types of forged products, such as flanges, discs, rings, valves, forged parts, and axles. Our program of forging billets includes a wide range of stainless steels and high-alloy materials.

Size

14″X17″
19″X21″
21″X23″
23″X27″
27″X31″

Grades

EN-1A, EN-8 *, EN-8D *, EN-8M, EN-9, EN-15, EN-15AM, EN-16, EN-18, EN-19, EN-24, EN-31, EN-32B, EN-45, EN-45, EN353, 15Cr3, 31cRV3, 40Cr4, 42CrMo4, 16Mncr5, 20mncr5, 20Mn2, 27MN2, 31Cr4, SAE - 1010, SAE - 1018, SAE - 4042, SAE - 4140, SAE - 8620, SAE - 52100, SAE - 1524, SCM - 435, 10B - 21, 15B - 25, C - 20, C - 50, 35C8

forging-ingots

Quality Check of Forging Ingots

Following checks are conducted in Forging Ingots and TEST CERTIFICATE as per customer requirements:

  • Surface inspection (Magnetic Particle Inspection) is carried out end to end.
  • Positive Material Identification using XRF to certify in-process chemistry of each bar.
  • 100%-dimensional verification using calibrated Verniers and Go/No-Go gauges.
  • Step down testing
  • Upset forging test
  • NMIR (Nonmetallic Inclusion Rating)
  • Macrostructure testing
  • Microstructure phase analysis
  • Grain size analysis
  • Ultrasonic Testing for internal defects
  • Our forging quality ingots are well-suited for open die hot forging processes, providing the necessary material for shaping and forming.
  • Our products are guaranteed to be free from radioactive elements, mercury, and lead contamination, adhering to the highest standards of safety and purity.
  • Mechanical properties, including impact (-190°C to 660°C)
