Pencil Ingots(cast billet ingots)

Balaji Multimetals Pvt.Ltd produce best quality cast billet ingots (pencil) for forgers in various grades, including carbon steel, alloy steel, stainless steel, and tool & die steel. Our ingots are designed for superior performance in forging applications across multiple industries.

Size

4.5″X5.25″
5.5″X6.5″
6.5″X7.5″
7.5″X8.5″
9″X10″
10″X12″
12″X14″

Grades

EN-1A, EN-8 *, EN-8D *, EN-8M, EN-9, EN-15, EN-15AM, EN-16, EN-18, EN-19, EN-24, EN-31, EN-32B, EN-45, EN-45, EN353, 15Cr3, 31cRV3, 40Cr4, 42CrMo4, 16Mncr5, 20mncr5, 20Mn2, 27MN2, 31Cr4, SAE - 1010, SAE - 1018, SAE - 4042, SAE - 4140, SAE - 8620, SAE - 52100, SAE - 1524, SCM - 435, 10B - 21, 15B - 25, C - 20, C - 50, 35C8

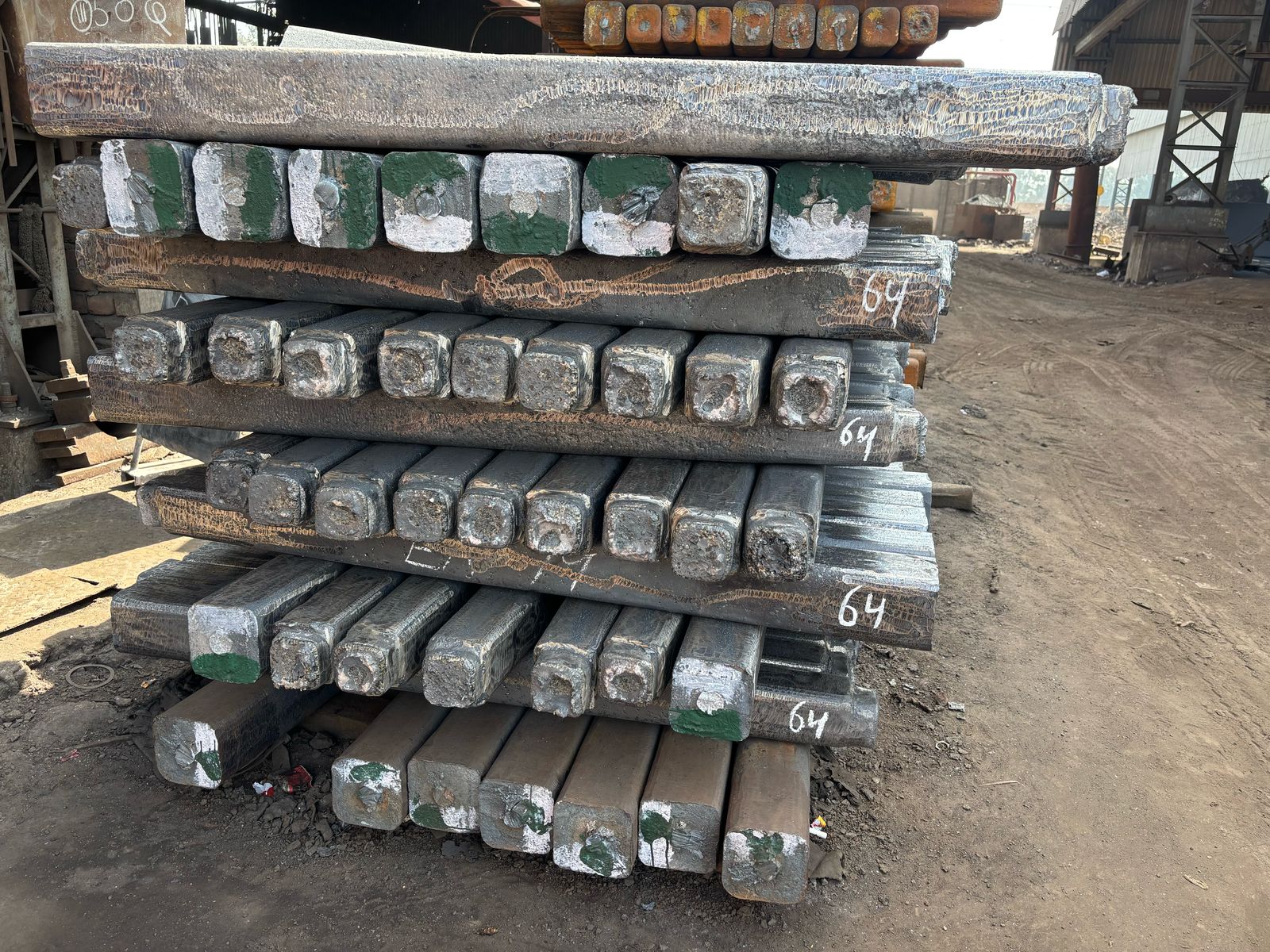

alloy-steel-pencil-ingots

Stringent Quality Inspections for Pencil Ingots ( Cast Billets Ingot)

Following checks are conducted in Pencil Ingots and reported in the TEST CERTIFICATE as per customer requirements:

  • Surface inspection (Magnetic Particle Inspection) is carried out end to end.
  • Positive material identification to validate in-process chemistry for each ingot.
  • 100%-dimensional verification using calibrated Verniers and Go/No-Go gauges.
  • Step down testing
  • Upset forging test
  • NMIR (Nonmetallic Inclusion Rating)
  • Macrostructure testing
  • Microstructure phase analysis
  • Grain size analysis
  • Macrostructure testing
  • Gas analysis (O, N, H)
  • Mechanical properties
